Bridgestone Waffle Rubber underlay:

Bridgestone Rubber underlay's are perfect for any floor heating systems and can operate in temperatures less than 40C.

For a smoothedge type of installation we only recommend the Supa Blue type of carpet cushioning. (see#)

Product

Description

Underlay

Thickness

Roll

WIDTH

Roll

LENGTH

WEIGHT

kg/m2

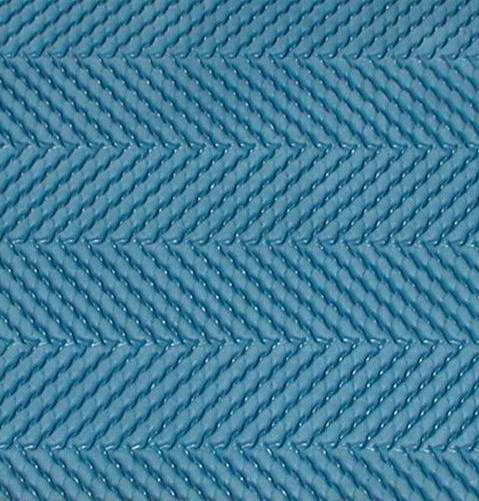

Supa Blue

This Heavy Duty Waffle Rubber underlay we Highly recommend, it will give you the best Luxurious Underfoot feel of all the underlay's.

9.5mm 1.22mt 9mt 3.200 ± 55

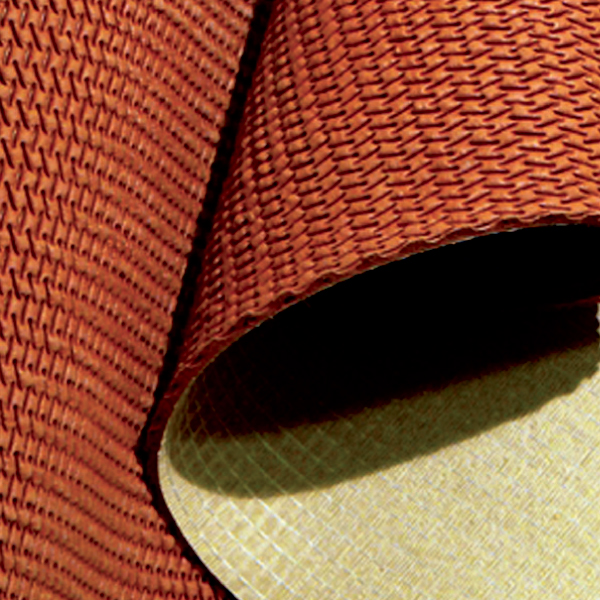

Prime Rubber

For Medium to Heavy traffic areas (rental property market), when using this underlay on stairs and narrow hallways, is a little thinner but still gives a good under foot feel.

7.6mm 1.22mt 9mt 3.000 ± 75

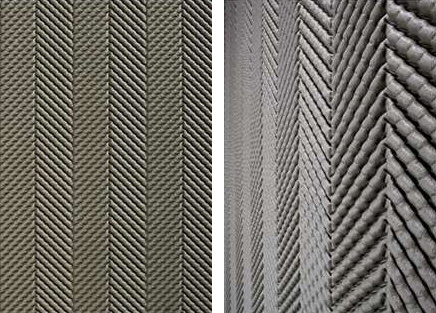

Platinum Supreme

Medium duty waffle rubber underlay.

9.5mm 1.22mt 12mt 2.535 ± 55
Supreme Green

Medium duty waffle rubber underlay.

9mm 1.22mt 12mt 2.450 ± 55

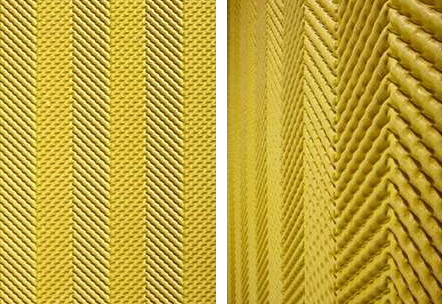

Gold Rubber

Light to Medium duty than the Black underlay below. (see#)

8mm 1.22mt 12mt 2.360 ± 55
Black Rubber

Recommend for LIGHT traffic areas, when using this underlay on stairs and narrow hallways, we have found from experience, this product will be BUGGERED & lost most of it's original structural properties after only a month or two. (see#)

7.5mm 1.22mt 15mt 1.830 ± 55
Supa Blue Rubber Prime Rubber Platinum Rubber Gold Rubber Black Rubber

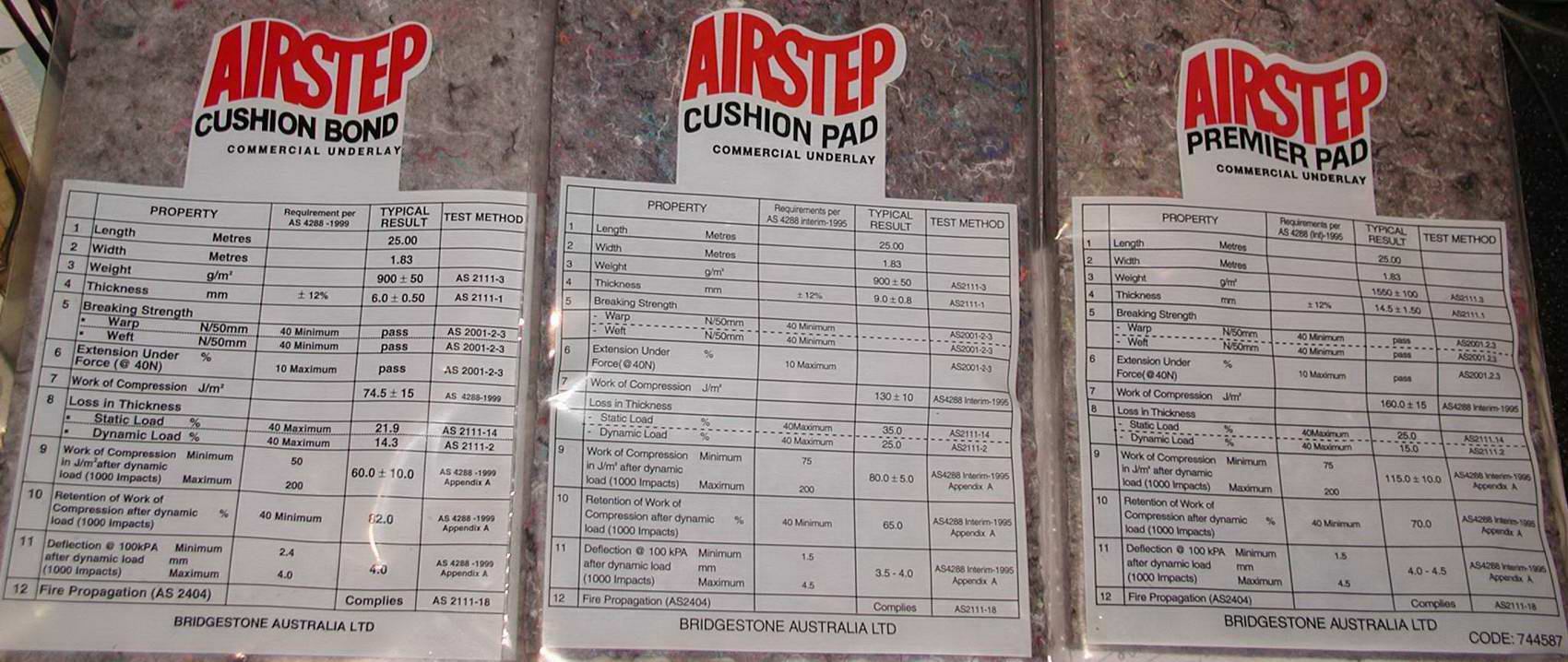

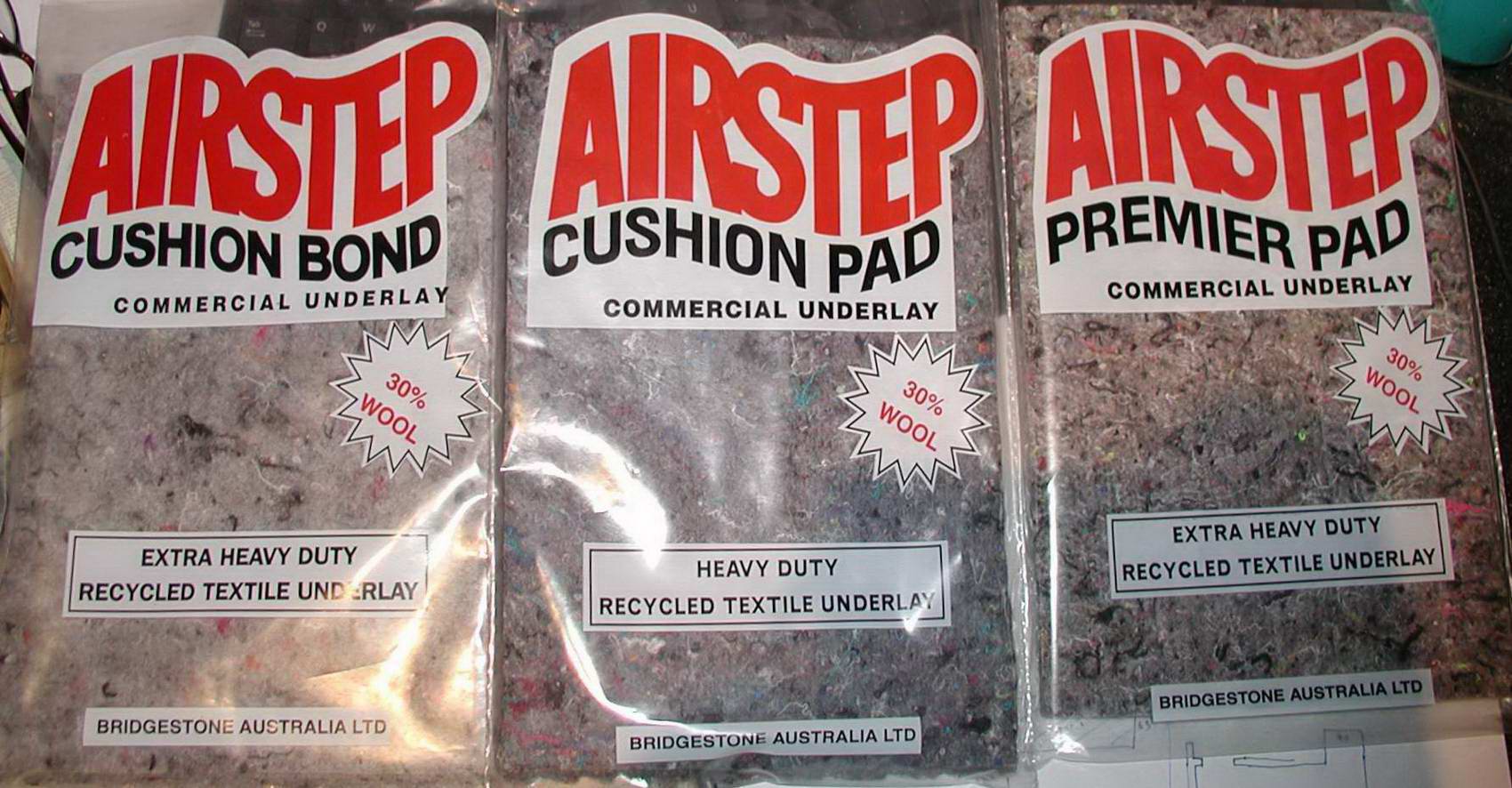

Bridgestone Cushion Pad Wool & Textile blended underlay: (30% Wool)

These underlay's are manufactured for Bridgestone Australia. These superior underlay's have 30% Wool blended with recycled Textile fibers, this padding is manufactured by a needle punched operation with a polypropylene binder. They are produced in a continuous sheet with square edges and is free of holes, imperfections and inclusions.

Product

Description

Underlay

Thickness

Roll

WIDTH

Roll

LENGTH

WEIGHT

kg/m2

Air step Cushion Bond 6000

Standard domestic weight padding.

9mm 1.83mt 25mt .600 ± 50
Airstep Cushion Pad

Medium weight padding. (Highly Recommend)

9mm 1.83mt 25mt 1.050 ± 50
Airstep Premier Pad

Heaviest duty of these textile padding's, when installing wall to wall be aware that this underlay is 7mm thicker than smoothedge.

14.5mm 1.83mt 25mt 1.550 ± 55

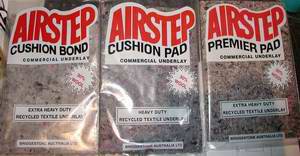

Cushion Bond   -   Cushion Pad   -  Premier Pad   Cushion Bond   -   Cushion Pad   -   Premier Pad

Dunlop Re-bonded Foam underlay:

For a Smoothedge installation we only recommend the Gymlay II & Excellay type of carpet cushioning. Underlay's treated with Ultra-Fresh® ensures effective, long term control of dust mites as well as the growth of destructive bacteria, moulds, mildew and fungi. Ultra-Fresh® also provides odour protection, increase hygiene and reduces staining.

(downloadable .pdf file)

Product

Description

Underlay

Thickness

Roll

WIDTH

Roll

LENGTH

WEIGHT

kg/m3

Excellay

We recommend the use of this Heavy Duty foam underlay Hotels, Conference Facilities, Theatres, Restaurants, Bars and Lounges, Public Spaces, Entertainment. (technical information)

10mm 1.80mt 10mt 1.200 ± 50
Ultralay II

This thin underlay is a very heavy duty underlay as it is designed for a "Double Bonded installation". (underlay & carpet glued down)

5mm 1.80mt 10mt .850 ± 50
Timber Cushion

Acoustic underlay, designed for installing under Timber float flooring.

3mm 1.60mt 10mt .510 ± 50

The LIGHTER weights of this type underlay are of domestic quality or for the "throw away" Rental property market, when using lesser quality underlay on stairs and narrow hallways, we have found from experience that these products will be all but BUGGERED and lost most of there original structural properties after only two or three months. (see #)

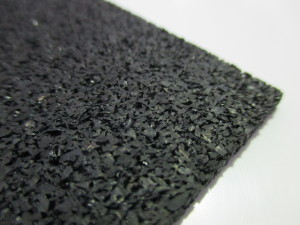

Bridgestone AcoustaLay: (Rubber Soundproofing)

Highly recommend if wanting to reduce noise transfer from one level to another !

This type of Layment is is designed to be installed under the Underlay and smootheadging, does not need to be fixed down as the weight will hold it in place, it can be glued to floor if required !

When installed it will raise the final floorcovering height by 5mm.

This product can simply laid out over a ceramic floor to give a safer non slip environment for parties & functions etc.

AcoustaLay now comes in 1m2 sheets ($15 each), this reduces the wastage as you only order what you require.

Product

Description

Underlay

Thickness

Roll

WIDTH

Roll

LENGTH

WEIGHT

kg/m2

Airstep ACOUSTALAY

This product is approx. 100% Recycled black rubber granules, has no Mesh & is vitrified (same on both sides).

 5.0mm ± .30  1.00mt 15mt 2.160 ± .20

Click here to download AcoustaLay Technical Specifications (.pdf file)


Dunlop Acousti-Cushion sound proofing underlay:

Dunlop AcoustiCushion is a sound choice in carpet underlays. It’s the perfect choice for multi-level residential living because it helps reduce the impact of noise through floors and ceilings by up to 69%, easily surpassing the industry standard set by the Building Code of Australia (BCA).

Our thickest foam carpet cushion yet, it makes your carpet more comfortable while also delivering outstanding sound insulation. It’s also a fantastic thermal insulator, which keeps your home warmer and helps reduce heating bills. And as you’d expect from a Dunlop carpet cushion, it improves carpet appearance and retention, extending the life of your carpet.

(downloadable .pdf file)

Product

Description

Underlay

Thickness

Roll

WIDTH

Roll

LENGTH

WEIGHT

kg/m2

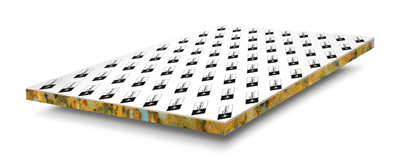

Acousti-Cushion

We recommend the use of this Heavy Duty foam underlay !

As this product is 12mm thick, you will not need to fit a timber battern underneath the standard 8mm smoothedge as this underlay is not that dense, so it will easily compress down to smoothedge height. (read additional information)

12mm 1.80mt 10mt 0.880 ± 50
AcoustiCushion_Black

Bridgestone Slab Rubber underlay: (for Double Bonded Installations)

This type of underlay is designed for Double Bonded Installations (Underlay glued to floor & carpet glued to underlay). Various Mesh is fixed onto both sided of these underlay's, the bottom mesh assists when the carpet is eventually taken-up & the Top mesh stops the glue absorbing into the underlay as well as protecting the underlay from damage while spreading the glue.

Product

Description

Underlay

Thickness

Roll

WIDTH

Roll

LENGTH

WEIGHT

kg/m2

Airstep Suporta Pad  This is lesser Weight & Thickness of "Double Bonded" underlay's. 3.7mm 1.83mt 12mt 1.300 ± 50
 Airstep Slab  This the standard version of this underlay. 4.7mm 1.83mt 10mt 1.390 ± 50
 Airstep Sensi Slab  The most used of the "Double Bonded" underlay's. 4.7mm 1.83mt 10mt 1.390 ± 50
Airstep Aero Cushion Slab

Highly recommend if using with a Smoothedge installation !

The most Luxurious underfoot feel of the "Double Bonded" underlay's.

7.0mm 1.83mt 6mt 2.200 ± 80

Click here to download Bridgestone's full underlay range (.pdf file)

Foam Sheet Underlay: (Not recommended for our Natural Carpets)





Frothed Foam: (Not recommended for our Natural Carpets)




(#) Be aware that their are stores that offer generic colour copy's of the original underlay's, some of these copy's are manufactured in a lesser weight than the Premium product !
